SYSVOL FRS to DFSR migration

Most of you probably already updated Active Directory infrastructure from Windows 2003 to Windows 2008 R2. What I see most is that administrators do not upgrade DFS replication subsystem for SYSVOL shares. Before Windows Server 2008 (also R2) was released FRS (File Replication System) is used. In Windows 2008 R2 there is new version released and it’s called DFSR (Distributed File System Replication).

FSR

FSR uses NTFS volumes’ USN journal to determine when a change has occured to a file and triggers replication. When FSR detects file close it gathers information about file and it’s attributes. It also checks file’s MD5 hash. If MD5 hash changes it will trigger replication. If file has changed whole file is send to FSR replication partners.

DFSR

First benefit of DFSR is that it doesn’t replicate whole file, but just a changed data in the file. To be able to check only changes in files it uses RDC (Remote Differential Compression) compression algorithm.



Migration in theory

To be able to use DFSR two conditions have to be met:

  • All domain controllers have to be at least Windows Server 2008
  • Active Directory domain level has to be at least Windows Server 2008

Migration is divided into stable and transition states. Stable states are:

  • Start – It’s a state before whole migration
  • Prepared – FSR replicates SYSVOL, while DFSR replicates SYSVOL content into its directory
  • Redirected – DFSR copy of SYSVOL is shared to users. FSR replicates original SYSVOL and DFSR replicates copy of original SYSVOL
  • Eliminated – DFSR takes care of SYSVOL share completely and FSR no longer replicates SYSVOL data

In background whole migration tool does following:

  • creates directory C:\\windows\\sysvol_dfsr
  • copies data from C:\\windows\\sysvol into C:\\windows\\sysvol_dfsr
  • remaps share SYSVOL into new directory C:\\windows\\sysvol_dfsr
  • deletes original directory C:\\windows\\sysvol

Before migration it’s important to have healthly AD infrastructure with working replication. You can check your infrastructure by:

  • checking SYSVOL share via net share command
  • using utility Ultrasound
  • checking with repadmin /replsum



Migration in practice

I will do the migration in one of my customer. Shares at customer site look fine:

net share

net share



Stage Start –> Stage Prepared

This is very simple. You need to run command:

dfsrmig /setglobalstate 1

dfsrmig /setglobalstate 1

dfsrmig /setglobalstate 1

Also event in DFS Replication eventlog was recorded:

dfsrmig /setglobalstate 1 Event

dfsrmig /setglobalstate 1 Event

and couple more events and the last one is

Event - prepare done

Event - prepare done

You can check other DC by running command:

dfsrmig /getmigrationstate

and you get following output (AD not in consistent state yet):



dfsrmig /getmigrationstate

dfsrmig /getmigrationstate



When it’s ready you will see following:



Prepare stage done

Prepare stage done



When server is ready you can find directory C:\\windows\\sysvol_dfsr:



SYSVOL_dfsr directory

SYSVOL_dfsr directory





Stage Prepared –> Stage Redirected

Just another easy step. Run following command:

dfsrmig /setglobalstate 2



dfsrmig /setglobalstate 2

dfsrmig /setglobalstate 2



And again you can check other DC by running command:

dfsrmig /getmigrationstate

When it’s all done, you will see following message:



Redirected phase done

Redirected phase done



And also SYSVOL and NETLOGON share are redirected to new directory C:\\windows\\sysvol_dfsr:



New DFSR share

New DFSR share

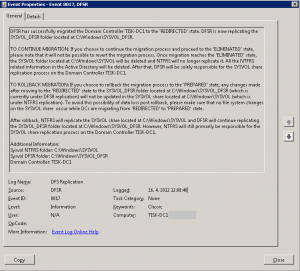

Also Event is saying details about changes:



Redirection Event

Redirection Event



When everythin looks fine, let finish it up.



Stage Redirected –> Stage Eliminated

This stages eliminates FSR from replicating SYSVOL data. Now you have to check your replication really close, because there is no step back.

If everything is alright, run following command:

dfsrmig /setglobalstate 3



dfsrmig /setglobalstate 3

dfsrmig /setglobalstate 3



When it’s done you will see running

dfsrmig /getmigrationstate





Eliminated stage done

Eliminated stage done



and also see following event:



Event Eliminating stage done

Event Eliminating stage done



There is no more C:\\windows\\sysvol directory. Just brand new DFSR directory C:\\windows\\sysvol_dfsr.

If you don’t use FSR services for any other replication you can remove it from your servers by removing File Replication Service.



Remove FSR

Remove FSR



I hope this arcite helps to keep your infrastructure up to date and use the goodies what new stuff brings.

There are usefull utilities to manage/debug DFSR: DFSRADMIN, DFSRDIAG, DFSUTIL, DFSCMD and DFSDIAG.
